The 5 Levels of Data Center Commissioning: Beyond Basic Startup

The digital world runs on data. Every transaction, every communication, every critical application depends on the silent and constant hum of data centers. But what happens when that hum fails? The answer is a nightmare: catastrophic downtime, revenue loss, reputational damage, and a domino effect that can paralyze businesses. It is not just a flickering screen; it is a sudden, terrifying silence that costs millions.

Imagine a critical surgery, but without any prior review, without sterile instruments, and without trained staff. Unimaginable, right? Yet many approach data center deployment with a similar lack of rigor, treating commissioning as a simple formality. This is a profound error. A staggering 75% of data center outages are attributed to human error. It is not a failure in the machines; it is a gap in preparation. Complete commissioning directly addresses this vulnerability, transforming potential human weaknesses into operational strengths. It is not just about validating equipment; it is about preparing the people who will operate and maintain these complex systems, ensuring they are familiar with every detail before introducing critical loads.

The cost of negligence is enormous. Problems that could have been identified and corrected early during thorough commissioning often manifest as severe consequences later. The return on investment of a complete commissioning often far exceeds its initial cost, not only by avoiding direct repair expenses but also by protecting intangible assets such as brand trust and operational continuity. This proactive approach prevents a cascade of small issues from becoming major disasters, making commissioning an investment in future stability and market position.

The true cost of a data center outage goes far beyond a simple repair bill. It affects every aspect of a business.

The Invisible Architects of Uptime: Understanding the 5 Levels of Commissioning

Data center commissioning is not a single or isolated event; it is a meticulous, phased process. It functions as a series of critical checkpoints, each ensuring perfection before advancing to the next. This systematic approach, guided by standards such as those from the Uptime Institute or ASHRAE, ensures that nothing is overlooked. It is about building confidence, step by step, culminating in an installation ready for flawless performance under any condition.

This structured methodology, often called staged commissioning, is a powerful risk management strategy. By requiring validation at each phase, it ensures that problems are identified and addressed early in the project cycle, when they are cheapest and easiest to correct. This prevents small problems from turning into costly and complex errors later, contributing directly to significant savings and fewer delays for the client.

While standards define the “what” (performance criteria and design requirements), commissioning levels define the “how” to achieve not only compliance but optimal operational excellence. This approach fosters a performance-oriented mindset, pushing systems to their limits and understanding their real capabilities, rather than merely meeting minimum requirements. Throughout this process, color-coded tags are used to visually identify the commissioning status of equipment and ensure traceability over time.

Summary of the essential levels:

Level 1: Factory Witness Testing (FWT) — The First Door to Reliability

Before any equipment reaches the data center site, it goes through rigorous Factory Witness Testing (FWT). This key step involves experts, often from the commissioning team, traveling to the manufacturer’s facilities. Imagine a critical surgery performed in a controlled and sterile laboratory, not directly in the operating room. FWT is that laboratory, a proactive measure to detect defects, verify performance, and ensure components meet specifications before shipment.

This early intervention reflects the principle that prevention is better than cure. A defect caught in FWT costs pennies; discovering it on site can cost thousands in delays, rework, and logistical problems. By addressing issues at their source, FWT prevents delays and cost overruns, helping the client save time and money.

For critical UPS (Uninterruptible Power Supply) systems, Factory Witness Testing (FWT) incorporates a variety of meticulous inspections and simulations. These include exhaustive visual inspections, static-state testing to verify input/output stability, harmonics, and operational efficiency, as well as dynamic testing to evaluate performance under different operating modes and overloads. Crucially, FWT also includes failure simulations, such as battery failures and AC mains failures, to ensure the UPS responds as expected. The Emergency Power Off (EPO) switch functionality is demonstrated, and insulation resistance tests are performed. The final reports generated from FWT are not just records; they serve as a fundamental template for later Site Acceptance Testing (SAT), ensuring continuity and efficiency throughout the entire commissioning process. This continuity streamlines the entire commissioning trajectory, enabling faster and lower-cost project completion.

Level 2: Component Delivery and Pre-Commissioning Reviews — Building the Invisible Foundation

Once the equipment arrives on site, the process continues with the meticulous activities of Level 2: Component Delivery and Pre-Commissioning Reviews. This goes far beyond a simple superficial check; it is a thorough inspection of every component, carried out by the commissioning team. The main objective is to ensure that what was ordered has actually arrived, is undamaged, and fully complies with all project requirements. This works as an essential quality control checkpoint, confirming that the base materials for the heart of your data center are in absolutely perfect condition.

This level also encompasses pre-startup verifications that are fundamental. It involves checking installation quality, ensuring strict compliance with construction drawings, confirming proper connections, and performing static tests such as insulation and pressure tests. These details that might seem minor — such as a clean, dust-free environment, correct cable routing, or adequate access spaces — have enormous importance. Neglecting them can lead to catastrophic failures later; for example, dust can cause overheating, incorrect wiring can cause electrical problems, and lack of space can hinder maintenance, compromising long-term reliability and increasing operational risk. This level is about building a resilient physical environment, where even the smallest error can have a domino effect on uptime.

For UPS systems specifically, this stage includes verifying the UPS room environment: ensuring it is adequately sized, has a non-flammable floor, and is dry, clean, dust-free, and properly air-conditioned (between 20 and 25 °C). All power and network cables are tested meticulously and confirmed to be correctly installed. Visual inspections are performed both outside and inside the UPS system, checking that components such as rectifiers, inverters, and static switches are secure and undamaged. Adequate clearances around the UPS and other cabinets are also verified, as well as the correct installation of battery trays, input/output cabling, and grounding conductors. This critical stage closes the gap between theoretical design and physical reality. Any discrepancy — such as misrouted cabling or an out-of-spec component — creates a fundamental failure that no subsequent functional testing can fully compensate for. It ensures that the physical manifestation of the data center is a faithful and accurate representation of the meticulously planned design, which is fundamental for predictable performance and high reliability.

Level 3: System Startup — Bringing Energy to Life, Safely

Level 3 marks the crucial moment when individual systems take their “first breath.” The commissioning team meticulously energizes the equipment in a controlled manner, applying initial configurations and adjustments. It is a delicate and carefully orchestrated process, which ensures that each subsystem is activated safely and performs its individual functions exactly as specified. Initial tests are performed across the entire site, and each step is rigorously documented, resolving any issues before they have the opportunity to escalate. This stage is fundamental to prepare individual systems for the complex functional testing that follows.

This stage represents the “first spark” of reliability. It is the initial active validation of the careful planning and installation performed in the previous two levels. If any component is damaged or was incorrectly installed, this is usually the point where those problems become painfully evident, allowing for their immediate correction. It ensures that the individual “organs” of the data center are in good condition and ready before being required to function together in complex tasks. This directly impacts the client’s objective of achieving high reliability by ensuring fundamental operability from the start.

For UPS systems, Level 3 involves their safe energization, verification of their voltage regulation capabilities, and confirmation of immediate battery backup operation. The UPS must demonstrate its ability to stabilize voltage fluctuations, thus protecting sensitive equipment from power anomalies. All adjustments are reviewed and meticulously documented, creating an essential baseline of the system’s initial and optimal state. This documentation not only serves for current verification; it is a critical tool for troubleshooting and performance optimization in the future. If failures arise years later, this baseline allows for rapid diagnosis and correction, minimizing downtime. It represents an investment in long-term operational efficiency and maintainability of the data center, directly supporting the client’s objective of reducing life-cycle costs and resolving issues effectively.

Level 4: Functional and Site Acceptance Testing — Demonstrating the Strength of Each System

Level 4 is where individual systems are pushed to their absolute limits. Functional Performance Testing (FPT) and Site Acceptance Testing (SAT) combine to confirm that each system works exactly as designed under a wide variety of operating conditions, including simulated failures. The commissioning team verifies complex operation sequences, tests different operating modes, and rigorously challenges the failover logic. This involves simulating real scenarios such as power outages, overloads, and HVAC failures to ensure systems respond effectively and predictably.

This stage goes beyond a simple “on/off” test; it delves into the subtleties of performance. It detects subtle failures that basic startup tests might overlook, such as a slight voltage drop under load or a delayed transfer to backup power. These subtleties are crucial for achieving true uptime and efficiency. The Site Acceptance Testing (SAT) at this level works as the first complete “dress rehearsal” for individual systems within their actual operating environment. It is the last opportunity to optimize and correct before integrating with other systems, providing valuable data specific to the site’s unique environment. This ensures that, when integrated, the system is already a proven, high-performance entity, reducing complexity and risk in the final stages.

For UPS systems, this level includes rigorous load testing using specialized UPS testers. Measurements are taken of discharge rates, runtime, and voltage stability to identify any signs of aged batteries or capacity issues. Power outages are simulated to verify that the UPS switches smoothly to battery mode, and its ability to handle the full load without overheating or suffering voltage drops is confirmed. The team also performs transfer and retransfer testing of the system, in addition to evaluating the UPS’s response to the loss and subsequent return of normal AC power. These exhaustive tests ensure that the UPS is not only functional but perfectly reliable under stress conditions.

Level 5: Integrated Systems Testing (IST) — The Ultimate Test for Uninterrupted Power

Level 5, Integrated Systems Testing (IST), is the grand finale, the ultimate stress test for the entire data center. This is where all critical systems — power, cooling, network, and fire suppression — must demonstrate that they work together fluidly as a single resilient entity. It is not enough for individual components to work perfectly; they must operate together, especially under pressure. This level reveals any “interoperability gap” that individual tests might have missed, ensuring that the complex interaction among all systems is truly validated.

The commissioning team simulates worst-case scenarios, including total power outages (the dreaded “pull the plug” or “blackout” test), individual equipment failures, and cooling losses. The value of the blackout test goes beyond identifying technical failures; it generates deep confidence in both the operating team and the client. It provides the best opportunity for the operations team to become intimately familiar with how the systems work and to test and verify operational procedures without putting critical IT loads at risk. This practical experience under simulated crisis conditions is invaluable.

During Integrated Systems Testing (IST), it is verified that the power backup systems, including UPS and generators, activate instantly, transfer loads smoothly, and maintain uninterrupted service. For UPS systems, this involves observing how they seamlessly transfer power to generators during a simulated mains failure, how alarms are triggered, and how Building Management Systems (BMS) and SCADA receive accurate notifications. The entire sequence is rigorously tested, from power loss to generator activation and return, ensuring no service interruptions. This validates the data center’s ability to survive chaos, guarantees operational readiness, and complies with strict Service Level Agreements (SLA). It is about ensuring that the “symphony of systems” works perfectly, even in the face of unexpected events, consolidating the data center as a true fortress of reliability.

Noxtel’s Commitment to Unbreakable Uptime

The journey through the five levels of data center commissioning is complex, demanding, and absolutely indispensable for any organization that takes availability and reliability seriously. It is a meticulous process that transforms a set of high-tech components into a unique, resilient, and high-performance ecosystem. From the manufacturer’s factory to the integrated installation, every step is a deliberate act of risk mitigation, quality assurance, and performance validation.

The benefits are clear: a significant reduction in initial failure rates, greater operational efficiency, lower life-cycle costs, and a well-trained operations team prepared for any challenge. This comprehensive approach ensures that your data center not only meets design specifications but also operates with unmatched reliability, protecting your critical data and business continuity.

Noxtel understands the deep fear of downtime and the critical desire for unbreakable reliability and cost savings. Our commitment goes beyond simple compliance; it is about delivering a data center that is a bastion of uninterrupted power, a testament to meticulous engineering and rigorous testing. We build the confidence that allows you to focus on innovation, knowing your digital foundation is secure.

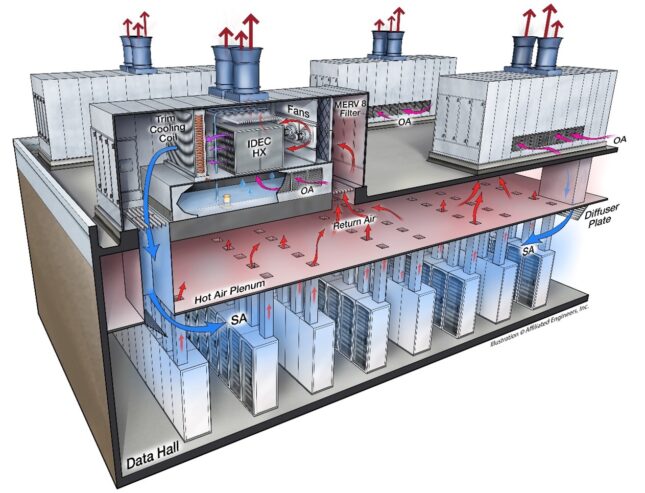

Image credits: Affiliated Engineers via CSE Mag: https://www.csemag.com/using-fluid-technology-to-address-cooling-limitations-in-data-centers/
