OTDR: How to Diagnose Fiber Optic Failures Before They Take Your Network Down

A dark fiber in a 2 km link and you need to know where the fault is. Is it the patch panel connector, a splice at 800 meters, or a bend in the vertical backbone?

Without the right tool, you spend hours swapping patch cords with no success. With an OTDR, you have the answer in 30 seconds.

What an OTDR is

An OTDR (Optical Time-Domain Reflectometer) injects light pulses into an optical fiber and measures the light that returns via Rayleigh backscatter or Fresnel reflection.

The returned signal is plotted as a function of distance, generating a trace that shows exactly what happens along the fiber.

Think of it as radar for fiber: every event shows up as a peak or step in the trace.

Events an OTDR detects

In practice, an OTDR identifies these events:

1. Connector: reflective peak + loss step. Mechanical connection, typical at start/end.

2. Fusion splice: loss step with no peak. Two fibers fused, low loss.

3. Mechanical splice: small peak + step. Temporary connection.

4. Macrobend: gradual loss step. Fiber bent beyond the minimum radius.

5. Microbend: gradual loss with no clear event. Fiber damaged by pressure or installation.

6. Break: strong reflective peak + signal cut. The distance to the peak is the fault location.

7. End of fiber: large peak or abrupt drop at the distal end.

Types of OTDR

There are three main categories. The full-feature OTDR is for laboratories, certification, and backbone networks, with cost from USD 8,000 to 30,000+.

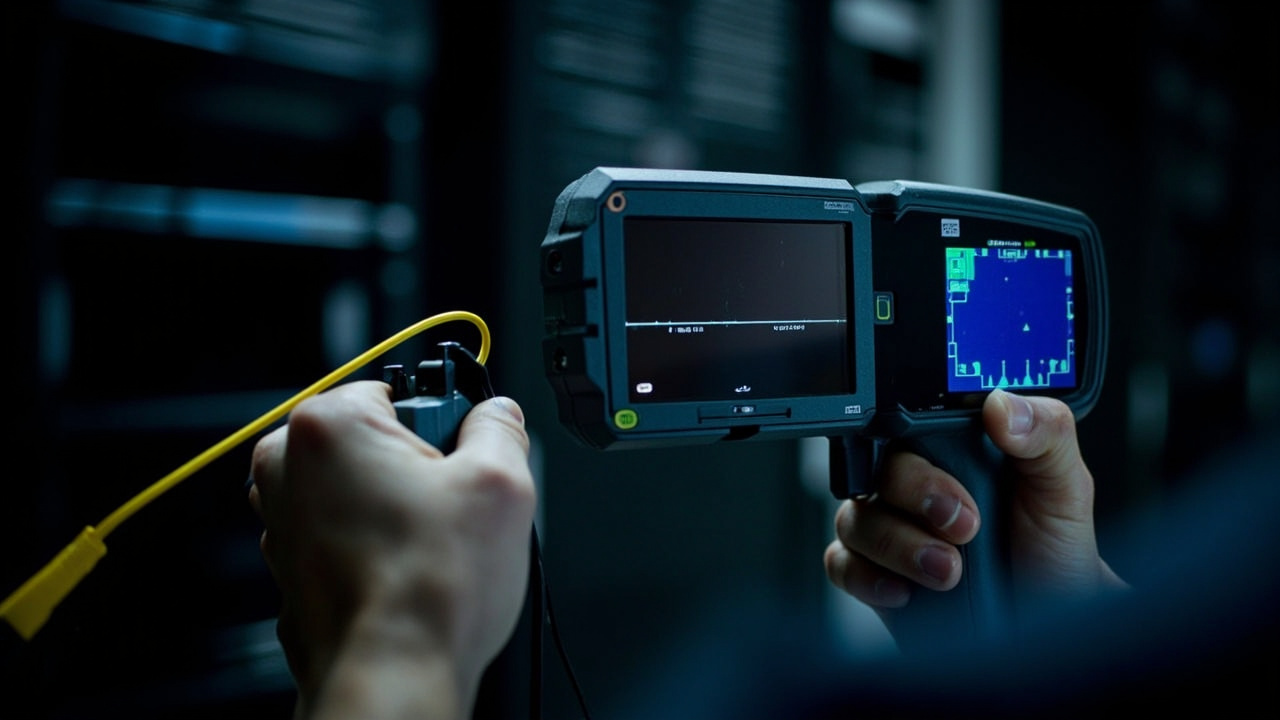

The hand-held OTDR is for field technicians and troubleshooting, with cost from USD 2,000 to 8,000.

The fiber break locator is used for quick break localization, with cost from USD 500 to 2,000.

For a typical data center with 50 to 500 m links, a hand-held is enough. Leading brands in the market: EXFO, Fluke Networks, Anritsu, and Viavi Solutions.

When to use an OTDR

Also when you are doing post-failure troubleshooting and need to localize exactly where the break or macrobend is.

It is also useful in preventive maintenance to detect early degradation before failure, and to document your network by generating reference traces that you can compare against future changes.

When NOT to use an OTDR

To connect or disconnect patch cords, use a VFL (Visual Fault Locator), which is a visible red light that shows the fault to the naked eye.

And never connect an OTDR directly to active fibers carrying traffic. Use a filter or work on the dark fiber of the bundle.

Practical example

You have a 200 m link between two racks and packets drop intermittently.

Step 1: confirm with a power meter the total loss. If within spec, the problem is the active equipment (transceiver or switch).

Step 2: if the loss is high (more than 3 dB for 200 m), launch the OTDR on the fiber.

Step 3: read the trace and look for reflective peaks (dirty connectors) or loss steps (splices or bends).

Step 4: the OTDR shows the distance to the event (for example, 23.4 m). You go to the patch panel at that distance and check.

Step 5: clean or replace the component. Measure again: the trace should return to the baseline.

The OTDR is the mandatory tool for any data center technician handling fiber.

Without it, you are guessing. With it, you diagnose in minutes what took hours.

The USD 2,000 to 8,000 investment in a hand-held pays for itself with the first incident resolved without calling an external provider.

Use it when you need to certify a new installation and verify that each connector and splice meets the specified loss.

To verify the total power of an active link, use a power meter with a light source instead. It is cheaper and faster.
