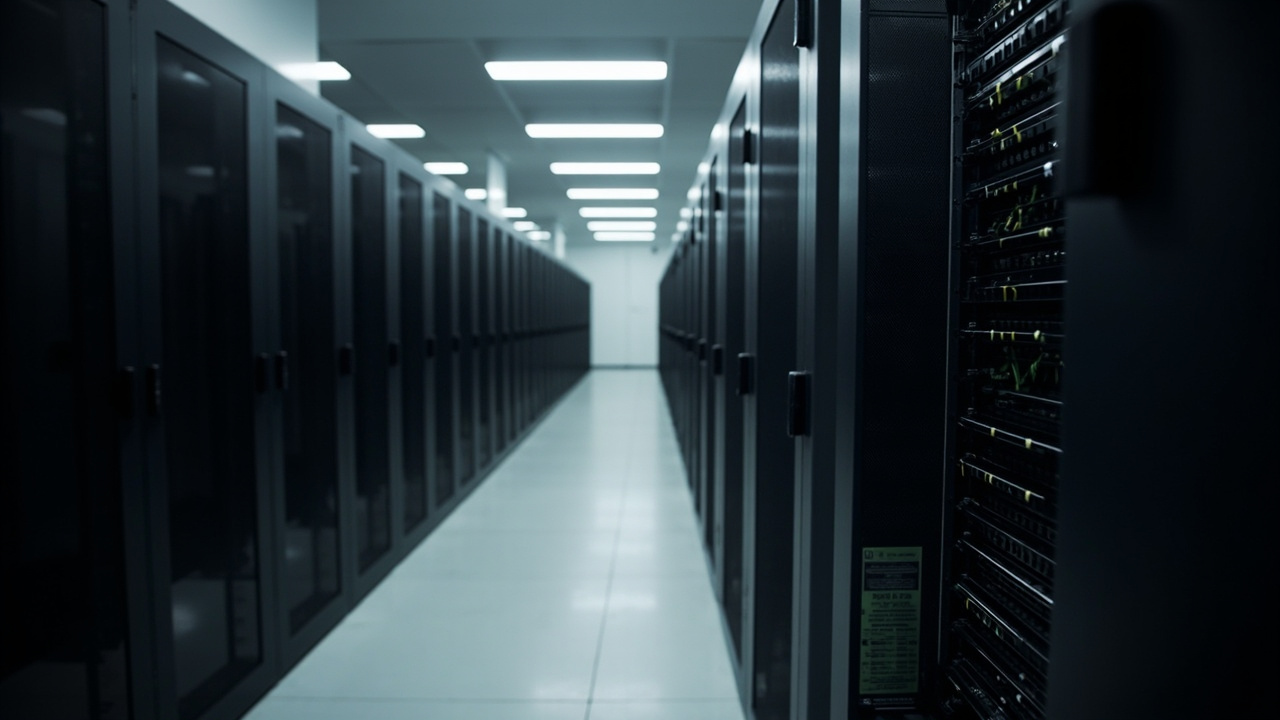

Data center rack types: 19″ vs 23″, 42U vs 45U vs 48U

Choosing the right rack for your data center is not trivial. The decision between 19-inch or 23-inch, between 42U or 45U, defines how dense you can make the site and how much it will cost to scale later.

And it is a decision made once per decade, not once per project. Changing the standard afterwards costs more than doing it right from the start.

Why the 19-inch width is the standard

The EIA-310-D standard defines 19 inches (482.6 mm) as the dominant rack width in the industry. What is called a “19-inch rack” actually measures 19 inches at the front panel width, with the outer structure a bit wider.

The alternative 23-inch (584.2 mm) standard comes from the telecom sector and is still used in legacy telephone exchanges and some carrier sites. For modern data centers, 19 inches is the practical norm.

Why rack height matters

Rack height is measured in “U” (rack units), where 1U equals 1.75 inches (44.45 mm). A 42U rack measures approximately 1.95 meters of external height.

42U racks are the most common standard in enterprise data centers. They allow a mix of 1U, 2U, and 4U servers, switches, and patch panels to be installed with room for patching at the top.

45U and 48U racks appeared to respond to growing blade server and high-density server density. They allow more equipment per rack but reduce the free space for cable management at the top.

The depth you need based on your equipment

The standard depth of a modern data center rack runs from 1000 to 1200 millimeters. Deeper equipment (blade servers, some storage arrays) requires 1100 to 1200 millimeters.

If you are evaluating a specific server brand, verify the depth stated by the manufacturer before choosing a rack. A 1000 mm server in an 800 mm rack will not fit, or will fit with no room for rear ventilation.

Technical tip: when sizing the usable rack depth, add at least 200 mm of clearance at the back for the bend radius of power and data cables, and for the cable management arms some manufacturers require on blade or high-density servers. Without that clearance, the rear airflow of the server is choked, intake temperature rises, and equipment life shortens.

When to choose 42U, 45U, or 48U

42U: the default option for a mid-size enterprise data center. Compatible with most servers, switches, and patch panels. Comfortable cable management at the top of the rack.

45U: when you need more density per rack and your floor space is limited. Useful for blade servers and high-density switches.

48U: for hyperscale or high-density sites. Maximizes equipment per rack but demands professional cable management and special attention to weight.

Comparative height table

External height is approximate and depends on the manufacturer and model. Exact dimensions are confirmed in the datasheet of each rack family before any purchase decision.

Brands and ranges you will see on the market

Chatsworth Products (CPI), Rittal, Vertiv, Schneider Electric (APC), Panduit, and Eaton are the main rack manufacturers for data centers. Each one has specific lines for standard and high density.

The manufacturer choice depends more on compatibility with its accessory ecosystem than on the chassis itself. Recognized brands (CPI, Rittal, Vertiv, Schneider Electric, Panduit, Eaton) sell a complete system around the rack: Zero-U PDUs that mount without consuming rack units, aisle containment systems (cold/hot) that close the air cycle and improve site PUE, and intelligent locks with electronic access control integrated with the DCIM. If your operation will grow, it pays to choose the manufacturer whose ecosystem covers what you will need over the next five years, not only what you need today.

Questions to answer before buying

• What servers and equipment will you install? Verify the declared depth of each.

• How much weight will the floor under the rack support? A fully loaded 48U rack weighs materially more than a 42U one.

• How will you handle top and bottom cabling? The rack must have room for cable routing at both ends.

• Does your PDU vendor have specific models for that rack height? Some PDUs are sold in lengths corresponding to 42U or 45U.

• Does your maintenance contract include access to the rack from all four sides? This affects usable depth.

The most common mistake

Buying the tallest rack available because “more capacity is better.” If your average density per rack is 15U in a 42U, a 48U rack only leaves more empty space at the top, not more capacity. Density per rack is optimized with good distribution, not with taller racks.

Common field mistakes that get expensive

• Ignoring the Door Frame Effect on 48U or 52U racks: with packaging, leveling feet, or casters mounted, total height exceeds 2.25 to 2.35 meters. Many standard data center room doors measure 2.10 meters and the unit physically does not fit in the room. Before bidding, measure the door frame and compare with rack height plus packaging plus base.

• Assuming the rack fits in the building freight elevator: a 48U rack packed in a cardboard box can stand at 2.3 meters. Most freight elevators in commercial buildings have a usable cabin height of 2.0 to 2.1 meters. Verify the cabin interior clearance before choosing the rack height.

Before buying, size correctly: a capacity planning tool based on a real equipment list tells you exactly what height, depth, and number of racks you need.
